HEPA Low Resistance Filter Media
HEPA Low Resistance Filter Media
| Filter Media Code | D65P5 D85P10 D95P12 D9997P25 D9997P35 |
|---|---|
| Basis Weight (g/m²) | 65-80 |
| Efficiency (%) | 65\85\95\99.5\99.97 |
| Resistance (Pa) | 5\10\12\25\35 |
| Filtration Grade | F6\F7\E10-E13 |
About This Product
Product Features
-
Reasonable Material Selection – Uses water-charged meltblown fabric as the primary filtration layer, combined with a high-stiffness support layer as the backing.
-
Advanced Composite Technology – Manufactured using hot-melt adhesive fiber lamination process, with only 0.8 g/m² adhesive, resulting in virtually zero additional resistance.
-
Filtration Grade – Available in filtration grades from M6 to H14 (30% – 99.995% efficiency, per EN 1822 / ISO 16890).
-

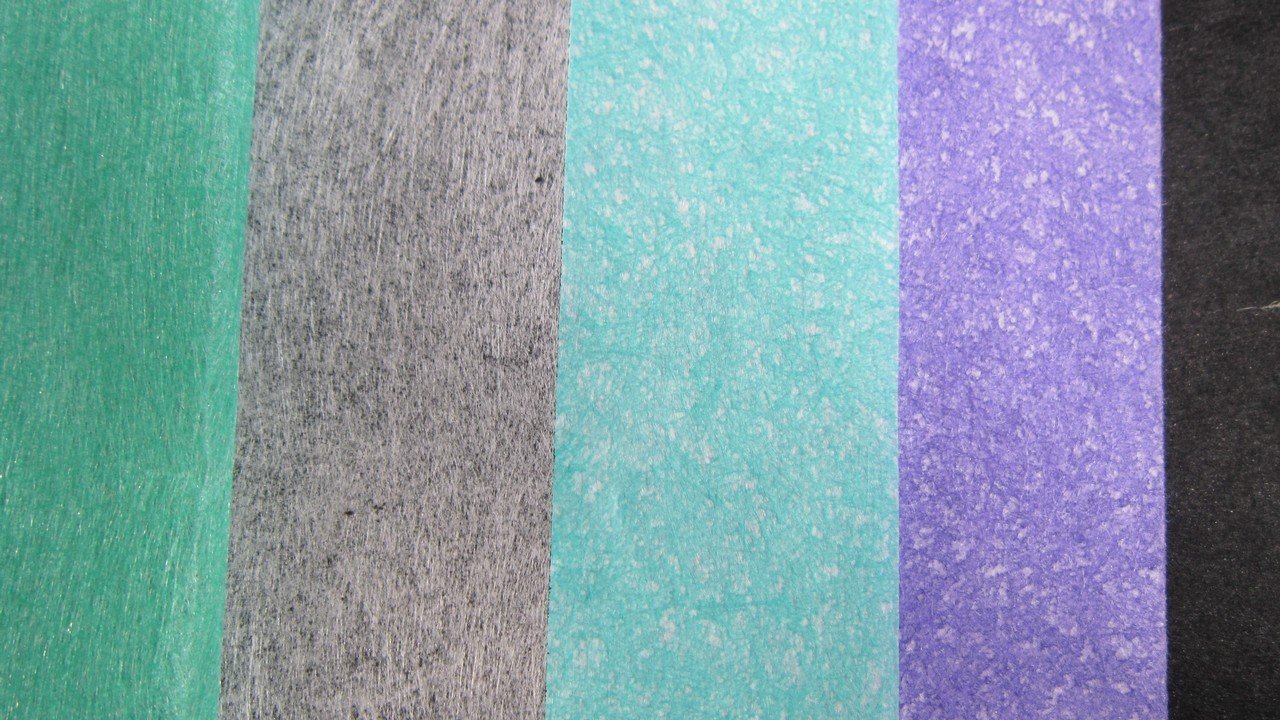

Additional Functions – The support layer can be customized with colorization, antibacterial and anti-mold treatment, formaldehyde removal, VOC removal, ammonia and H₂S removal, flame retardancy, and water/oil repellency (three-proof finishing).
Product Applications

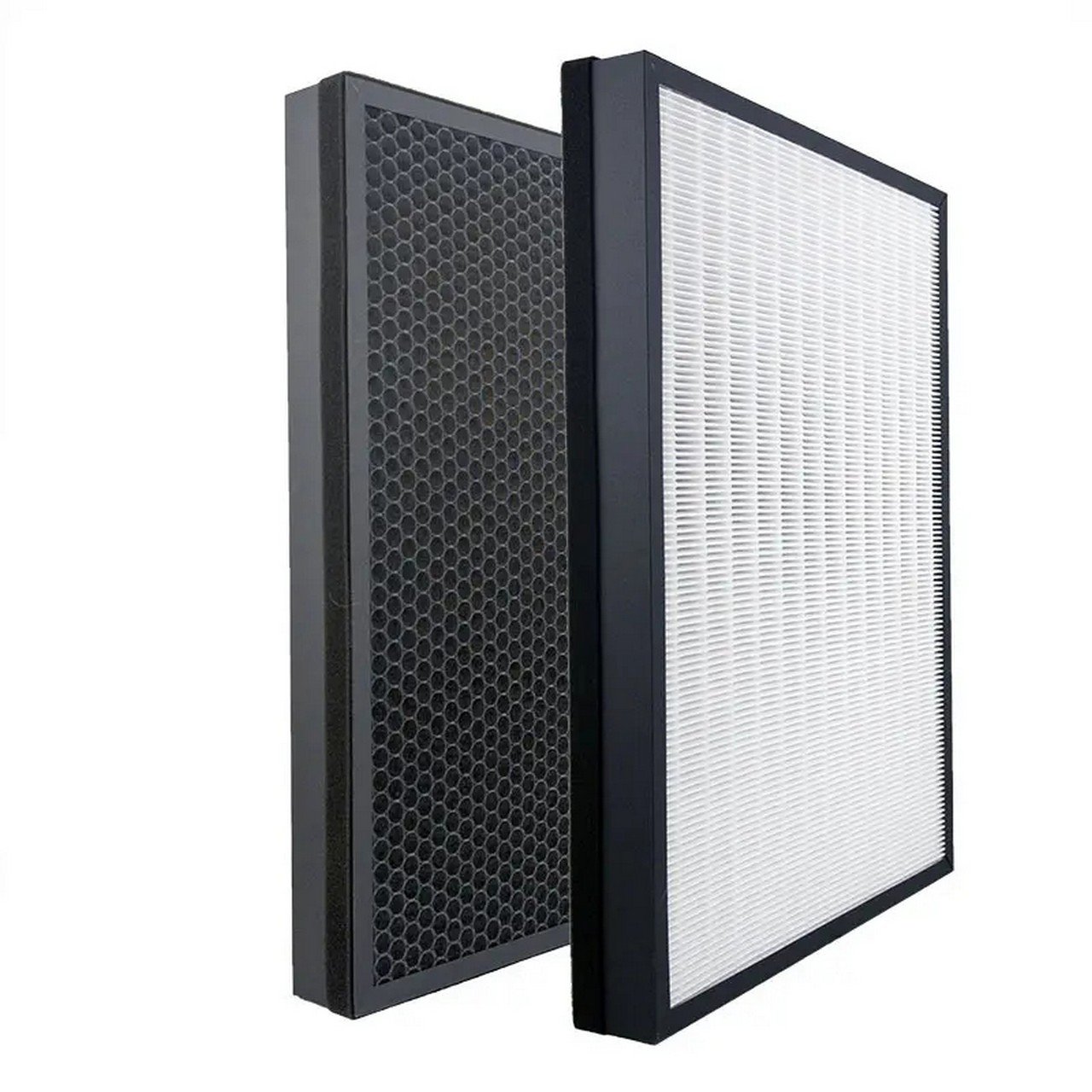

Used for ventilation and filtration in central air conditioning systems, automotive air conditioning systems, air purifiers, energy recovery ventilators / fresh air ventilators, vacuum cleaners, oxygen generators, respirators, and other special-purpose ventilation filtration applications.
