Y120W0410L5A

Y120W0410L5A

SKU Y120W0410L5A Category

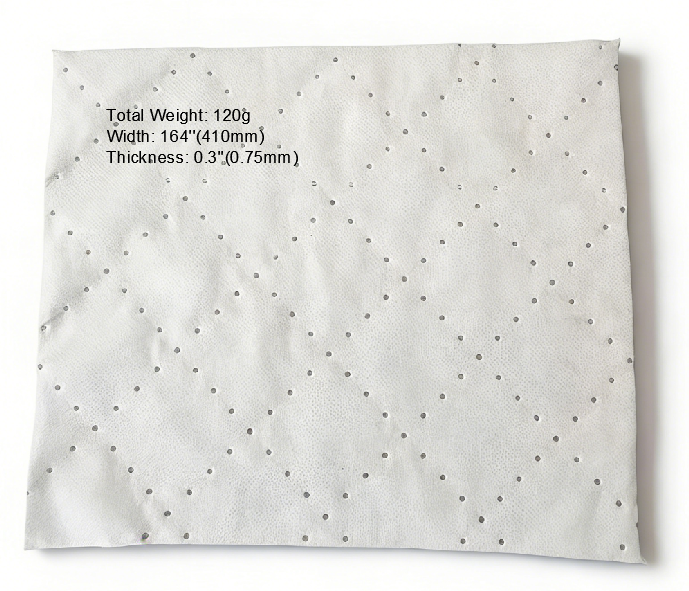

Total Weight

120g/Available upon request

Model Info

Y120W0410L5A

Filtration Grade

H12/Available upon request

Resistance

65Pa

Net Width

1540mm max/Available upon request

Color

Available upon request

Dot Embossed Pattern

Diamond pattern/Available upon request

About This Product

【High-Efficiency Air Filtration for Respiratory Health Protection】
Engineered with a multi-layer composite structure, this material significantly enhances the capture of fine particles such as dust, pollen, and PM2.5. Customizable filtration efficiency (G3 / F5 / F7, etc.) makes it ideal for vacuum cleaner dust bags, air purifiers, HVAC filters, and industrial dust collection systems — purifying air at the source and protecting sensitive individuals and family members.

【Customizable Width & Basis Weight for Flexible Equipment Fit】
Supports customizable width (up to 1540mm) and basis weight (50–150g/m²) to easily match different filter cartridges, dust bags, or filtration components. Whether for compact household devices or large-scale industrial dust collection systems, precise fit is achieved, reducing material waste and installation issues.

【Multiple Color Options for Product Grading & Identification】
Available in various custom colors to meet brand appearance requirements and to help differentiate filtration levels or application scenarios, facilitating production line assembly and end-user recognition while improving product management efficiency.

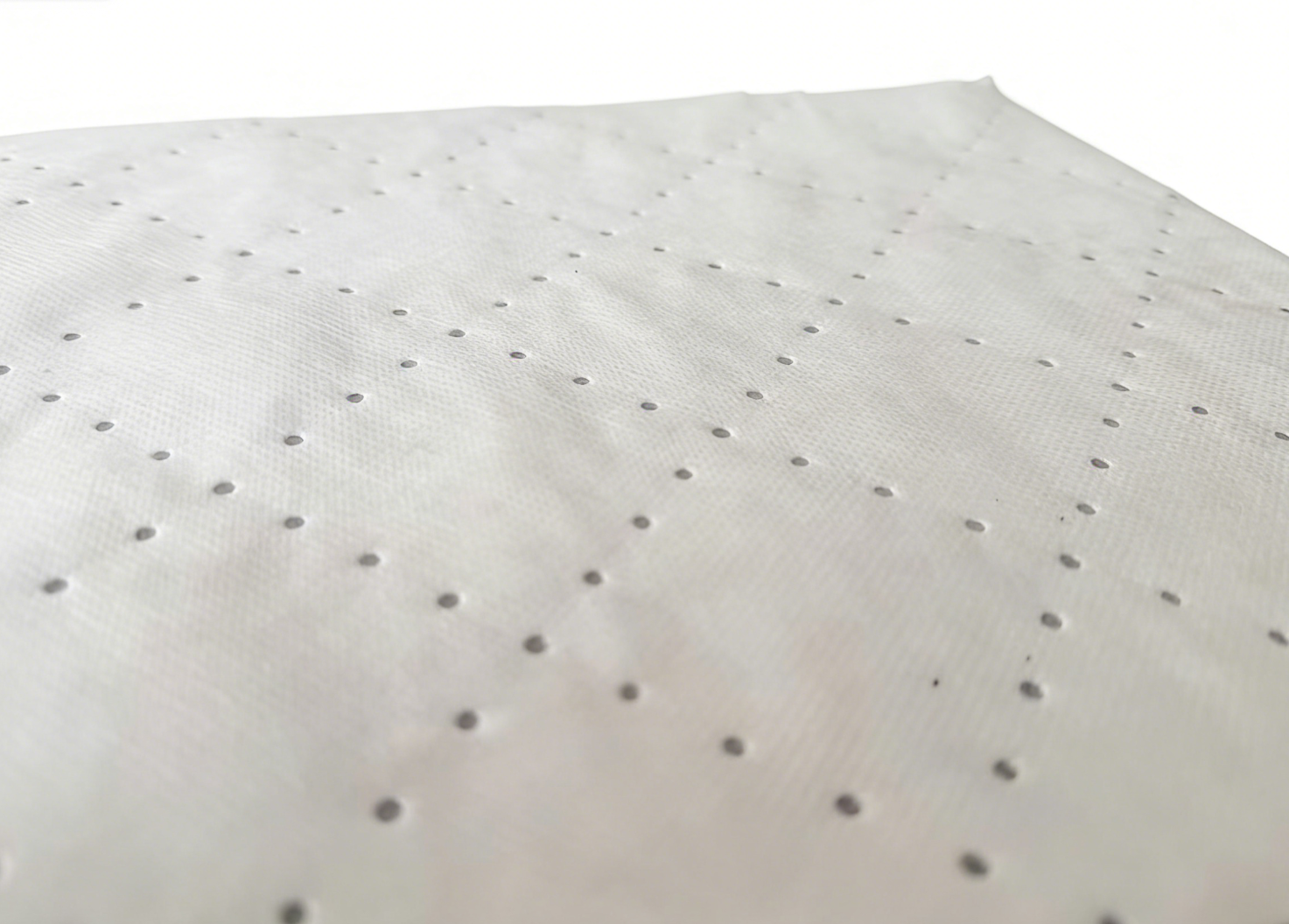

【Embossed Pattern Enhances Structural Strength & Reduces Pressure Drop】
The precision embossed surface treatment increases material stiffness and tensile strength while maintaining high air permeability, reducing the risk of deformation or tearing during use. The embossed texture also lowers airflow resistance (pressure drop), enabling the filtration system to run more efficiently and quietly, extending equipment service life.

【Eco-Friendly & Safe Materials, Compliant with Export Standards】
Made from non-toxic, odorless, and recyclable composite materials — free from formaldehyde, heavy metals, and other harmful substances — compliant with EU REACH and RoHS standards. Suitable for demanding household and medical filtration applications, with support for long-term supply and bulk customization, helping customers build safe, compliant, and cost-effective air filtration products.
